5. SFTP & SSH
This guide explains how to create SFTP and SSH users with authority to transfer files to and from your server.
For more information about the SSH & PHP functions and commands that you can use on WPMU DEV hosting, please see our Allowed & Disabled Functions & Commands document.
Your Hosting panel now includes a File Manager utility in case you don’t really want to use SFTP or SSH. See the Tools > Files guide for more.
5.1 SFTP and SSH usersCopy chapter anchor to clipboard
SFTP/SSH users are required to connect to a WMPU DEV hosted site using an FTP client or terminal application.
SFTP vs SSH
SFTP and SSH users connect to servers using the same security protocol, so neither is more or less secure than the other.
SFTP users can connect to a server and edit files using an FTP client like Filezilla or Cyberduck.
SSH users can connect to a server from their preferred terminal. After connecting, they can use tools such as the WordPress command line interface, WP-CLI. In simple terms, SSH users need no special software to connect to a server and have access to a powerful set of commands not available to SFTP users.
Do I need an SFTP/SSH user?
The rules of thumb are:
- If you don’t know whether or not you need an SSH user, then you don’t.
- If you need to move files to or from your site using anything other than the built-in WordPress tools– a file that exceeds the file size limit of the WordPress uploader, for example– you will need an SFTP user to do so.
- If you can achieve your goals using the file transfer tools built into WordPress, you don’t need one either.
SFTP/SSH users are site-specific, which means users created for Site A cannot access Site B or any other site, including different sites attached to the same member account. Staging sites, for example, require their own SFTP/SSH users even if the production sites from which they are pulled already have existing SFTP/SSH users. Users created for multsite networks can transfer files to and from any subsite of that network, but only sites within that network.
5.2 Creating SFTP/SSH UsersCopy chapter anchor to clipboard

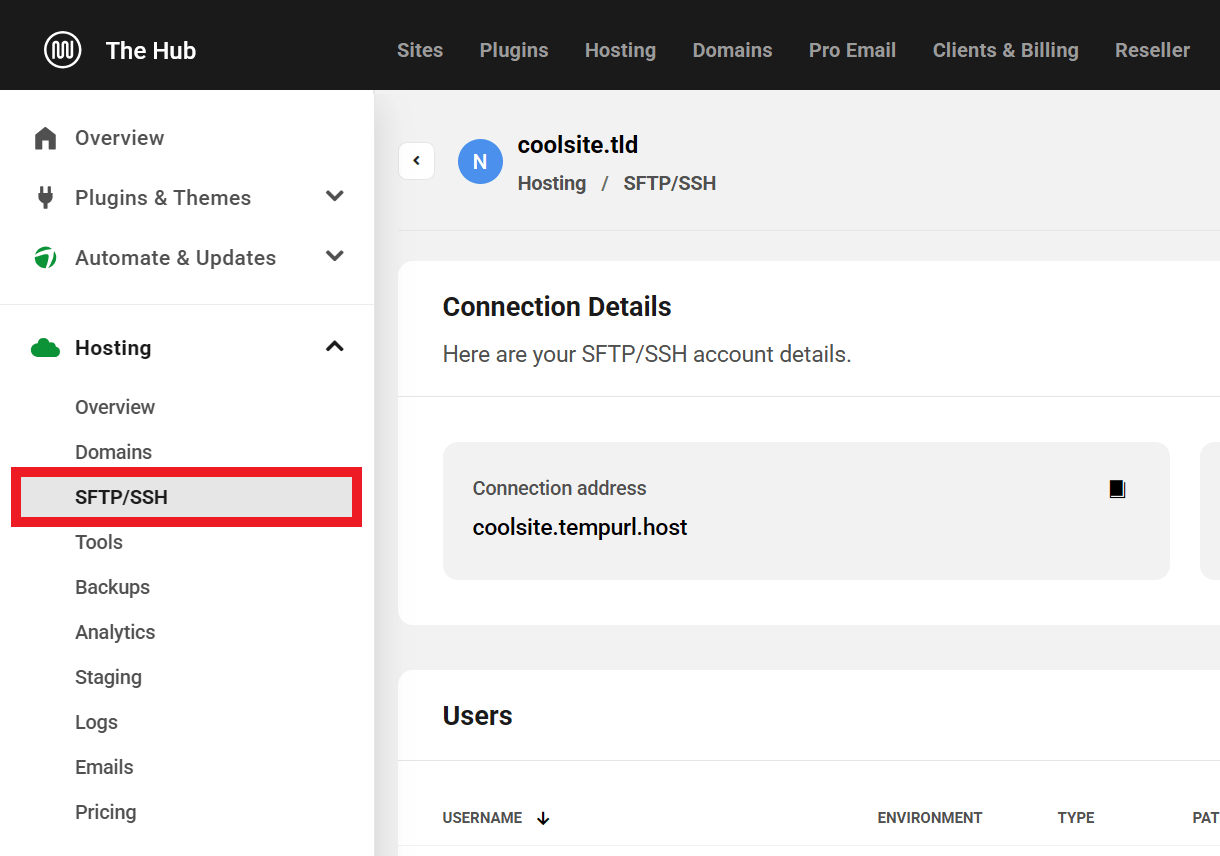

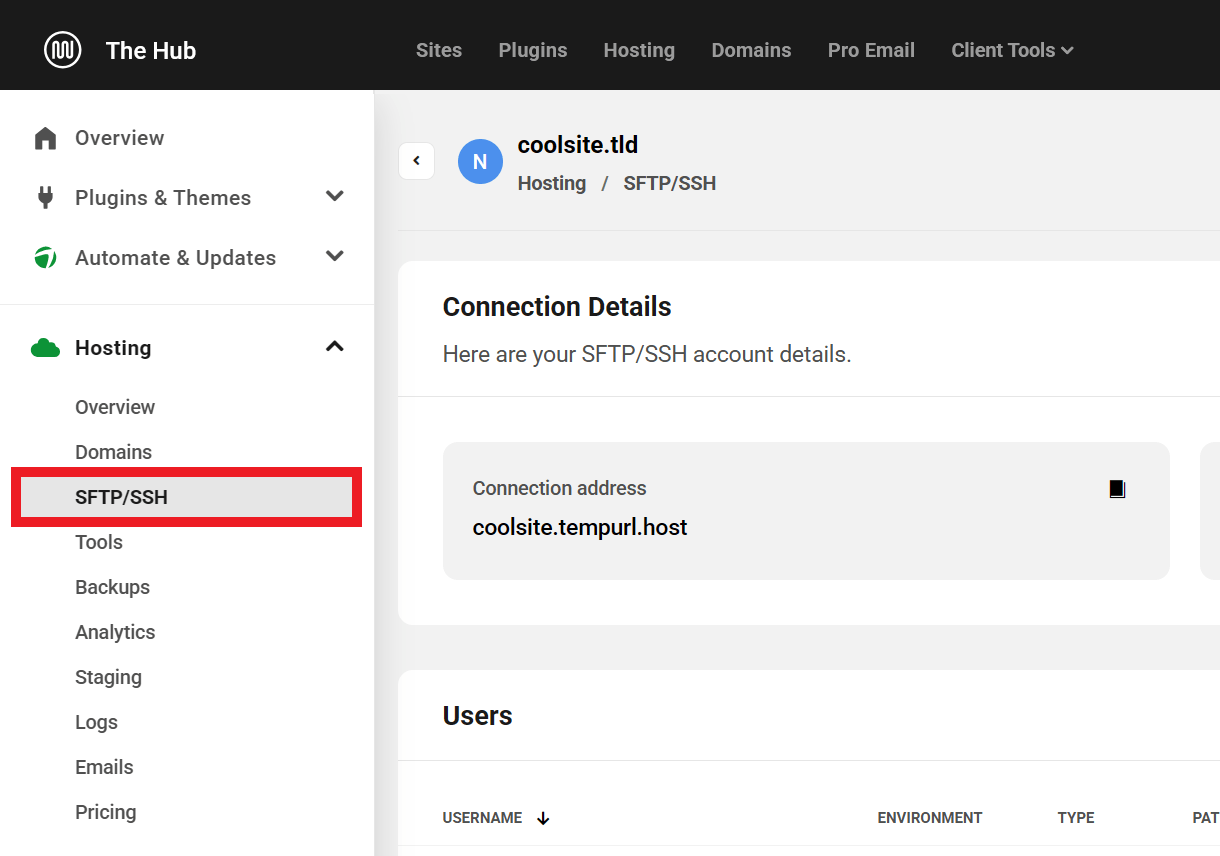

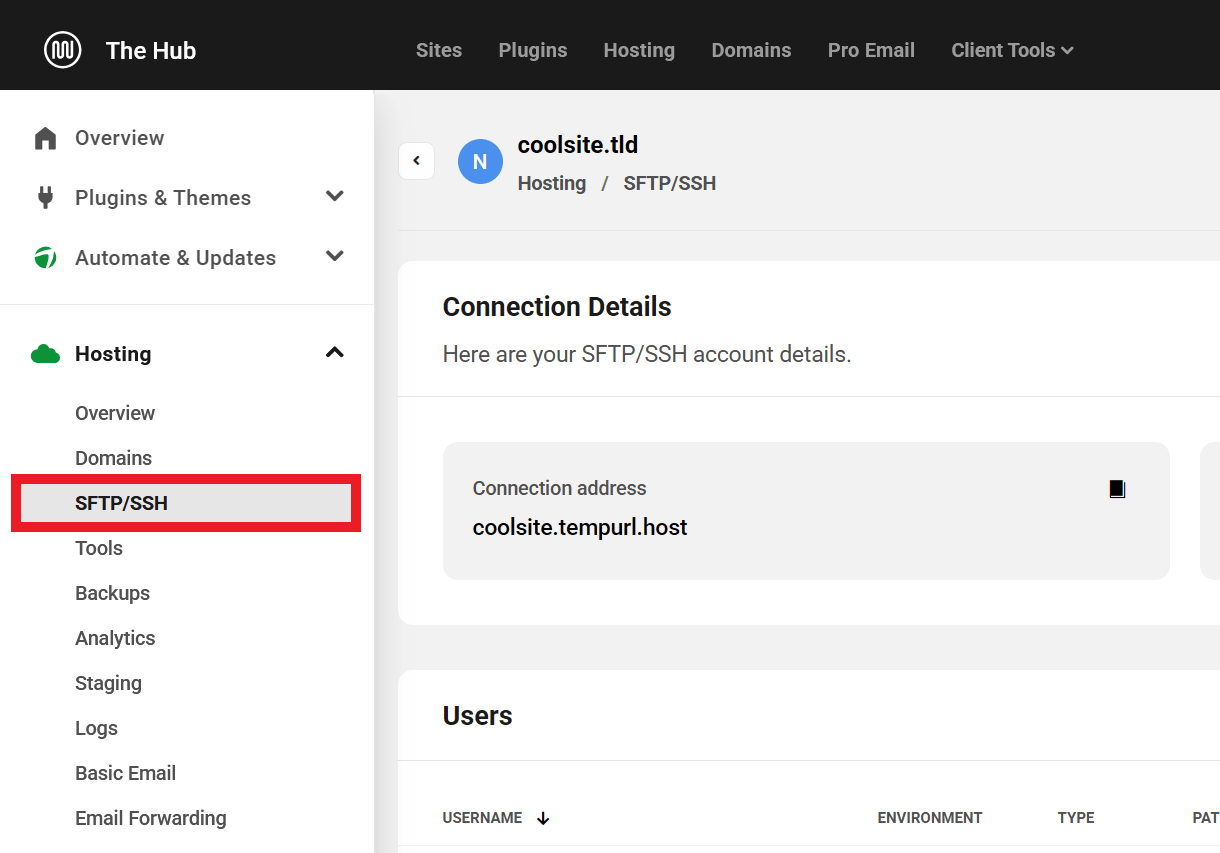

Begin by selecting a site in Hub 2.0. From that site’s dashboard, click Hosting and then SFTP/SSH to access the SFTP/SSH Accounts screen.
The page includes the SFTP/SSH connection information for the current site and a list of the existing SFTP/SSH users. From this screen members can create and delete users or change the password(s) for existing users.
The information displayed includes:
- Connection Address (Host) – This is the URL used by WMPU DEV internally to identify your site and is the required URL for SFTP/SSH connections. Many FTP clients refer to the Connection Address as the Host.
- Port number – The port associated with this site.
- Username – The username(s) of both SFTP and SSH users that have been created for this site. If no users have been created, the list will be empty.
- Environment – During creation, SFTP/SSH users are given access to either a production (live) site or a staging site, and that status is displayed here.
- Type – These users are either SFTP or SSH, and that designation is displayed here.
- Path Restriction – The access granted to SFTP/SSH users can be restricted to certain areas of a site’s file structure. This label indicates the type of restriction, if any, has been placed on the user. The label None indicates a user with no restrictions and with access to all site files.
- Connection Info – A convenient link created to simplify the configuration necessary to connect to a WPMU DEV hosted site via SFTP/SSH.
- Edit Password (pencil icon) – Click the pencil icon to access the edit password modal. SFTP/SSH user passwords can be changed as necessary, but user names cannot changed after creation.
- Delete – Click the trash icon to open the delete user modal.

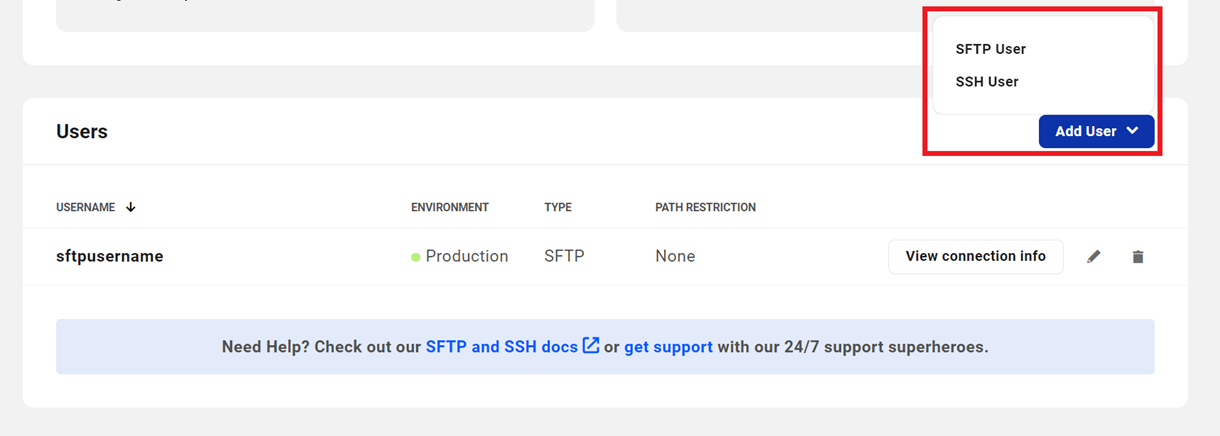

Click the Add User button and choose SFTP User or SSH User from the drop-down menu.

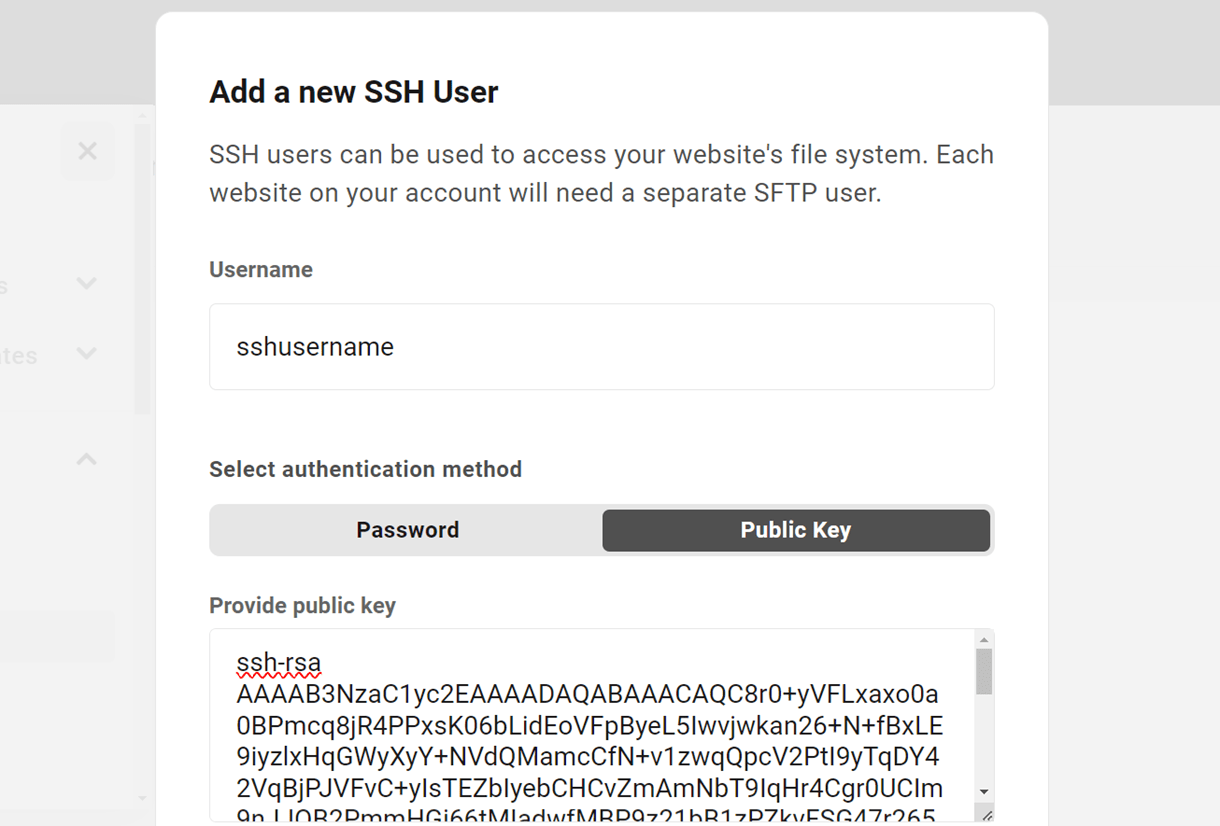

In the modal that appears, enter a username and password in the fields provided. Use the strong password that is automatically generated or enter custom password.
SFTP/SSH user passwords can be changed as necessary, but the username, restriction, and environment selected when a user is created cannot be modified later. Fortunately, users can be deleted and new users with new access rights can be created at any time.

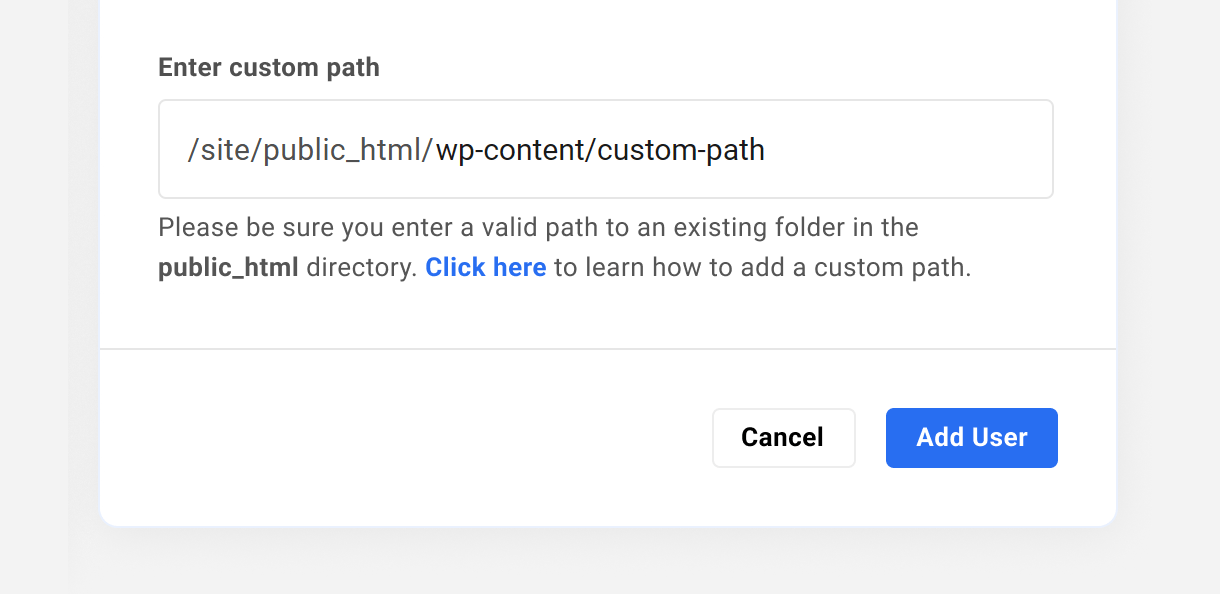

SFTP/SSH users can be restricted to specific folders within the WordPress file structure. This might allow, for example, a graphic designer to access the Uploads folder where images are stored, while preventing that person from accessing files elsewhere.

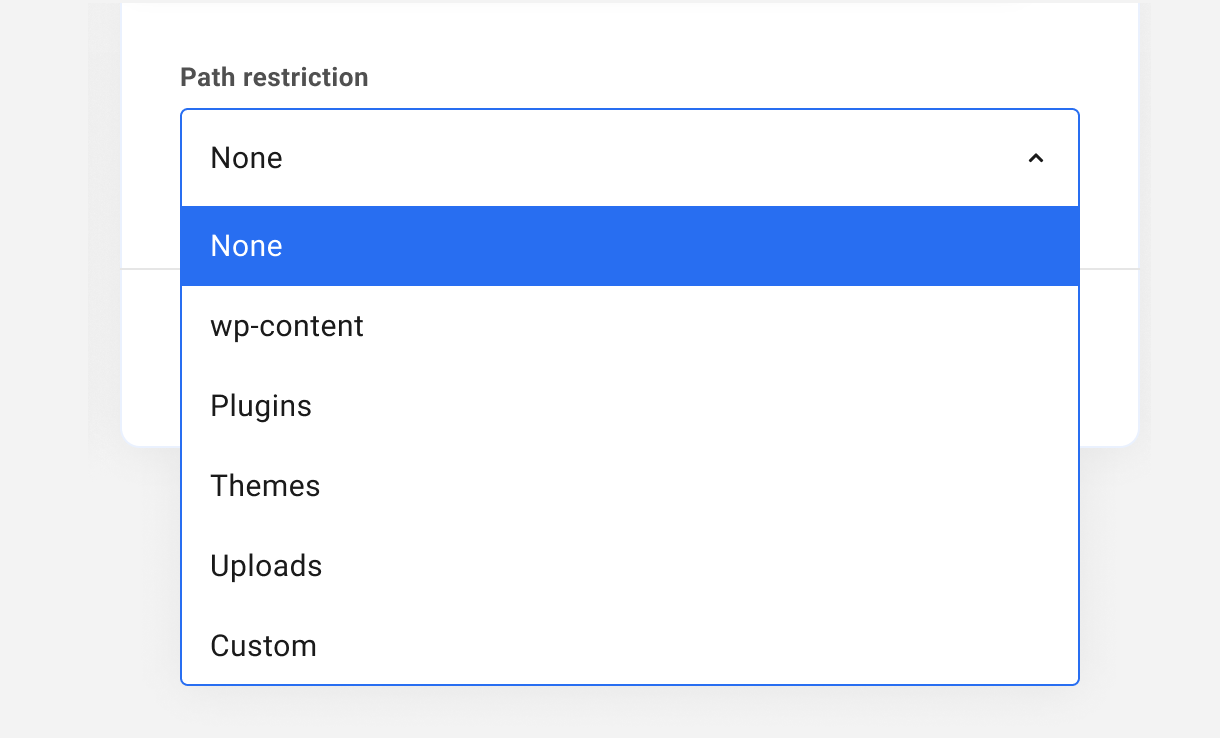

Use the Path Restrictions drop-down menu to determine the scope of a new user’s access as follows:
- None – No restrictions. User can access all site files
- wp-content – Grants access to the wp-content folder, which contains all uploaded files, plugin files, theme files, the site index, and language files
- Plugins – Grants access to the Plugins folder only
- Themes – Grants access to the Themes folder only
- Uploads – Grants access to the Uploads folder only
WPMU DEV members whose sites we host can create a staging copy of any production site where changes can be implemented and tested before they go live. Production sites and staging sites require separate SFTP/SSH users.

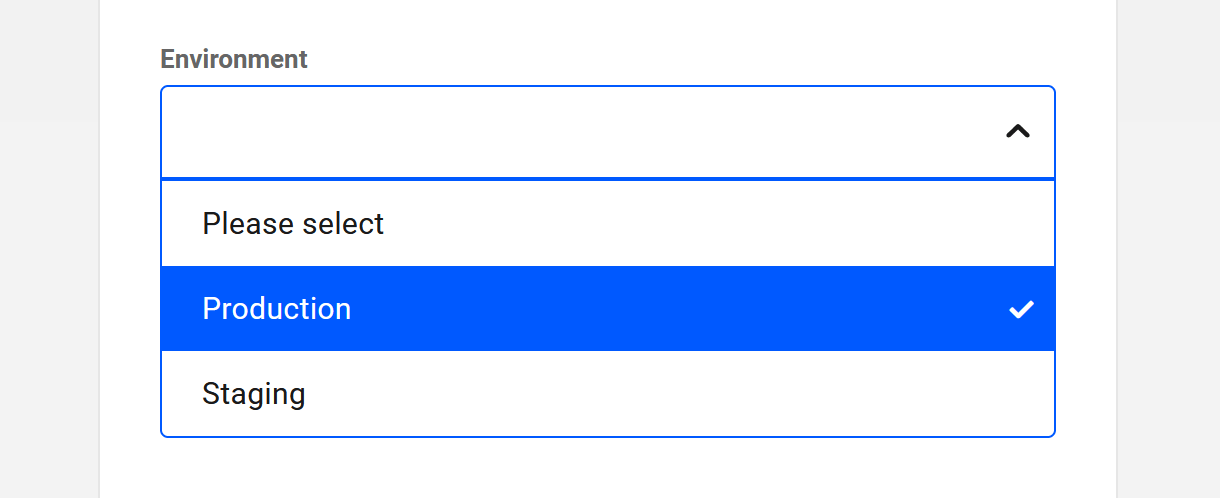

Use the Environment drop-down menu to associate the new user with the correct environment.
When you’re ready, click Add and the new SFTP/SSH user will be created.
5.3 Connection InfoCopy chapter anchor to clipboard
The following information, located near the top of the SFTP/SSH Accounts page, is required to connect SFTP/SSH users to a site:
- Connection Address (Host) – This is the URL used by WMPU DEV internally to identify the current site, and is frequently referred to as the Host or the Host Address. Regardless of how many domains may be associated with a given site, the Connection Address/Host displayed on the SFTP/SSH Accounts page is the only URL that can be used to connect to that site via SFTP/SSH.
- Port number – The port associated with the current site.
- Username – The username for the SFTP/SSH user being connected.
- Password – Click the pencil icon next to any SFTP/SSH user to view that user’s password.

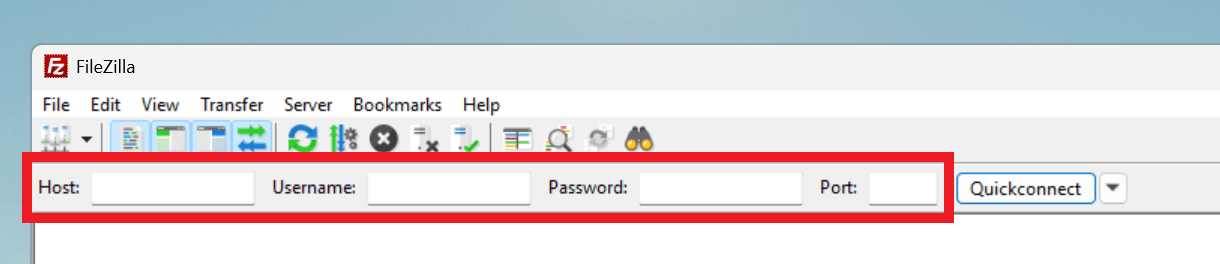

These credentials must be entered into the relevant fields in an FTP client to connect to the site, as shown in this Filezilla example.
Quick Connect Link

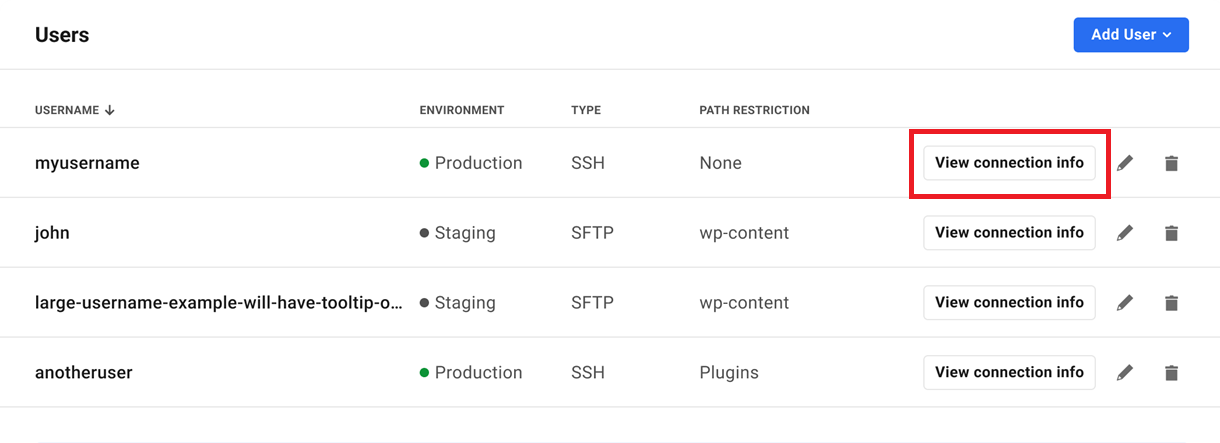

Click the Connection Info icon next to any SFTP/SSH user to reveal a quick link created for that user.

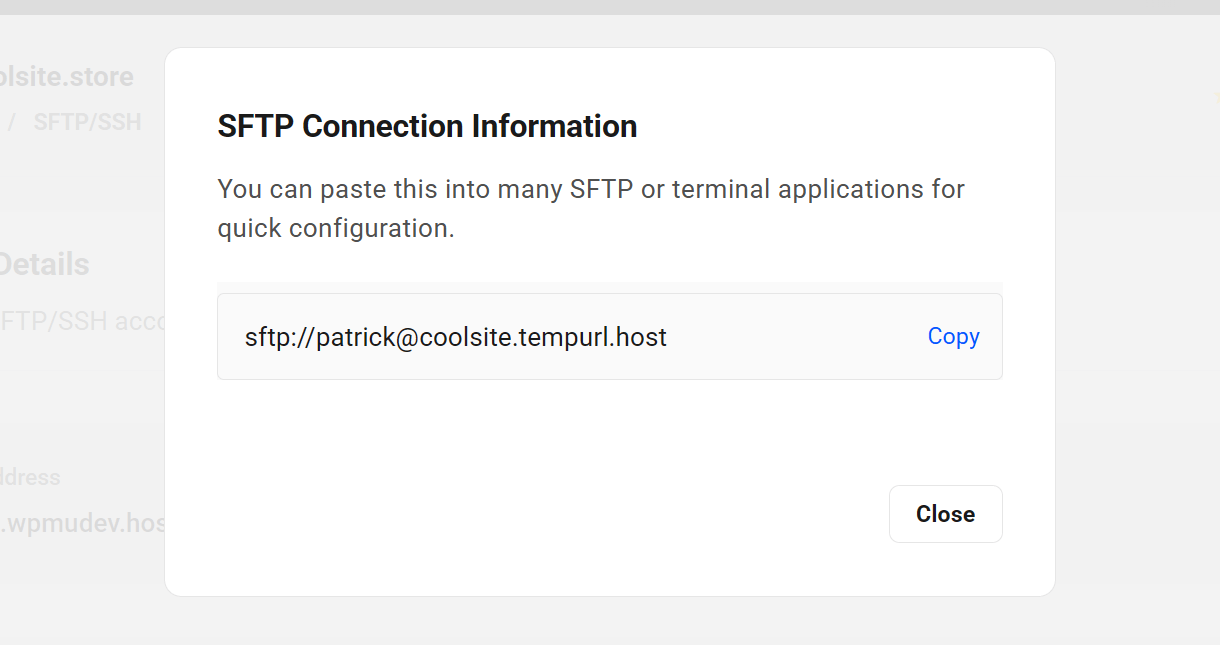

The quick link, when copied into an FTP client or terminal application, identifies the site and the user to be connected.
The site’s port and SFTP/SSH user password are still required when using the quick link.
5.4 SSH TunnelingCopy chapter anchor to clipboard
In our managed WordPress hosting, it is not possible to directly access the database except by using the Manage Database options in your Hub.
However, advanced users may have the need to access their database from some other client application. This is where SSH tunneling comes in handy.
SSH tunneling enables you to remotely connect to your site’s database and securely perform any needed tasks from within your preferred application.
Regardless of the application you use for an SSH tunnel, all you need is an SSH account and the access credentials to your database.
- Connection Address (used for the hostname in most applications)
- Port (should always be 22)
Access the wp-config.php file for the corresponding environment, and copy the following credentials (depending on the application you’re using, you may or may not need all of these; see the examples below):
Note that the DB_HOST includes both the localhost IP address (127.0.0.1) and the port needed to connect to your database. You’ll want to be sure to use the correct port for either your production or staging site’s database.
- Production port: 3306
- Staging port: 3307
You can access the wp-config.php file for your production environment using the Manage Files option found under the Tools tab in your Hub.
Access the wp-config.php file for your staging environment using the Manage Files option under the Staging tab in your Hub.
Note that if you need credentials for both environments, you can switch between production and staging directly in the File Manager once you’ve accessed it.
Open your preferred desktop application and enter your SSH & database credentials. Of course, the interface will vary according to the application used, so we’ve provided a few setup examples below.
5.4.1 SSH Tunneling Setup ExamplesLink to chapter 4
Configuration examples are provided here for the following applications:
- PuTTY – Command line interface – Windows & Linux only
- HeidiSQL – Pretty GUI – Windows only
- MySQL Workbench – Pretty GUI – Windows, Linux & MacOS
We’ll assume you already have PuTTY installed on your computer.

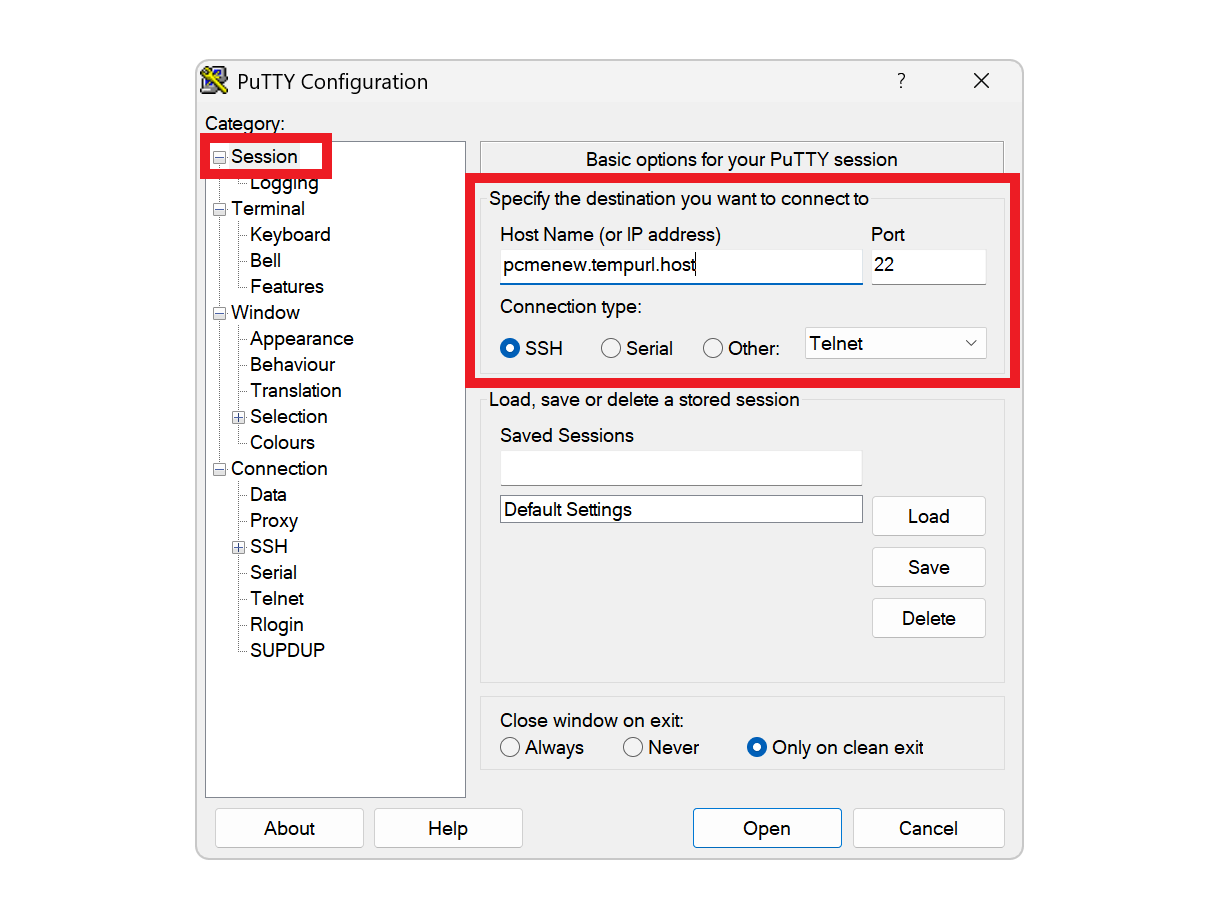

Launch PuTTY and be sure you’re viewing the main Session window.
Enter your SSH Connection Address in the Host Name field. Leave the Port there as 22, and the Connection Type should be SSH.

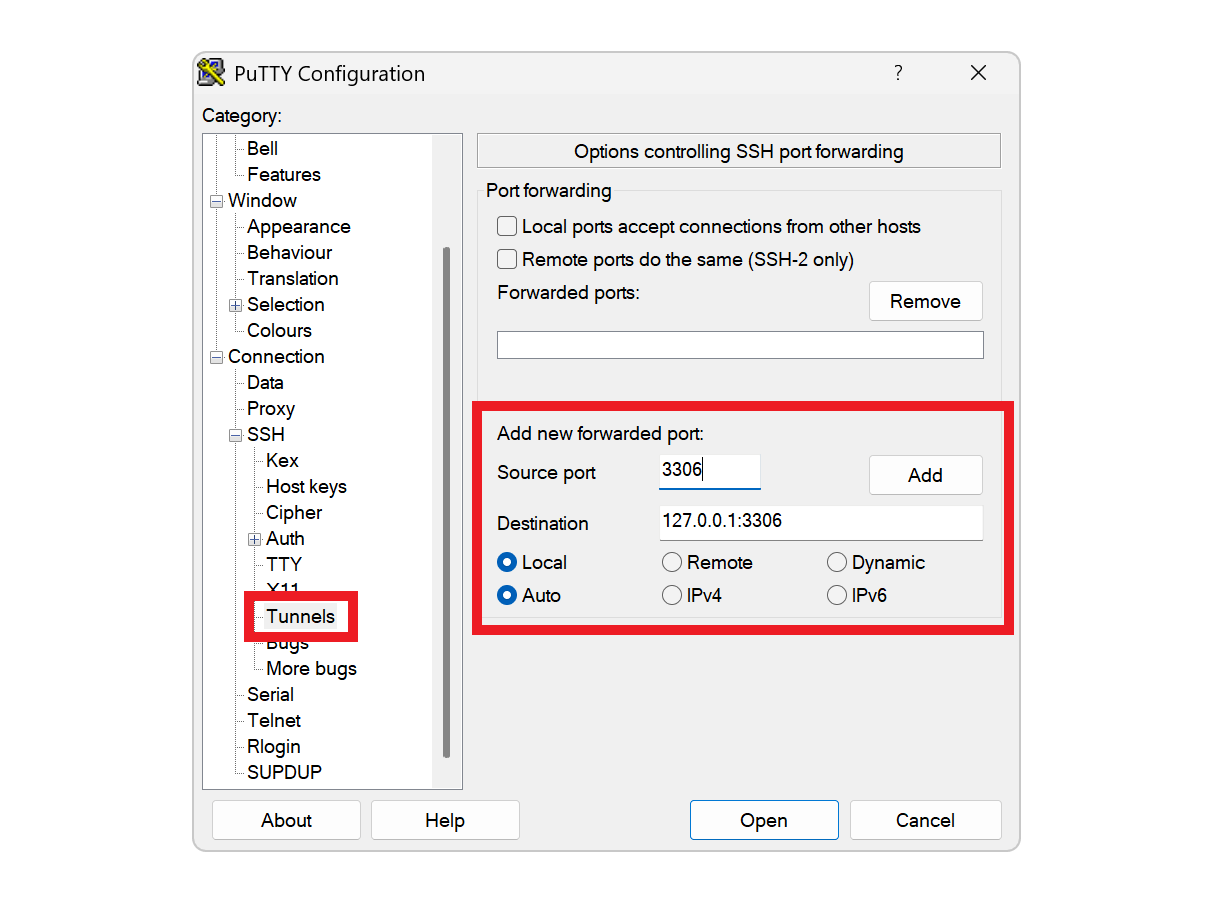

Next, expand the SSH menu in the left-hand sidebar and click on Tunnels.
In the Source Port field, enter the database port that corresponds to the environment for which you created your SSH user, as seen in Step 2 above: 3306 for production, or 3307 for staging.
Then, in the Destination field, enter the DB_HOST info you copied in Step 2, including that same port again. So, for a production environment, you’d enter 127.0.0.1:3306, or for a staging environment, you’d enter 127.0.0.1:3307
Leave the Local and Auto options checked.

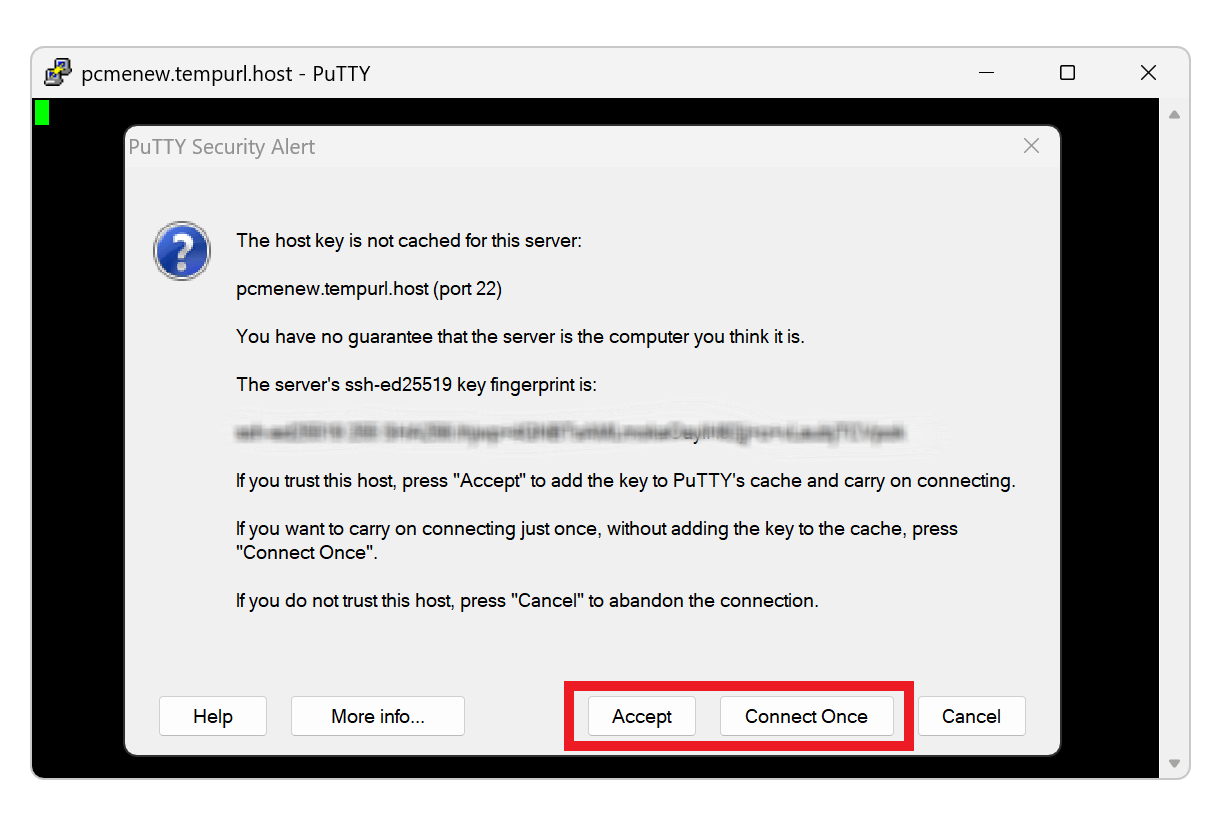

Click the Open button, and your command line interface will pop open. A security alert will appear if this is the first time you have connected with these credentials. Click either Accept or Connect Once to proceed.

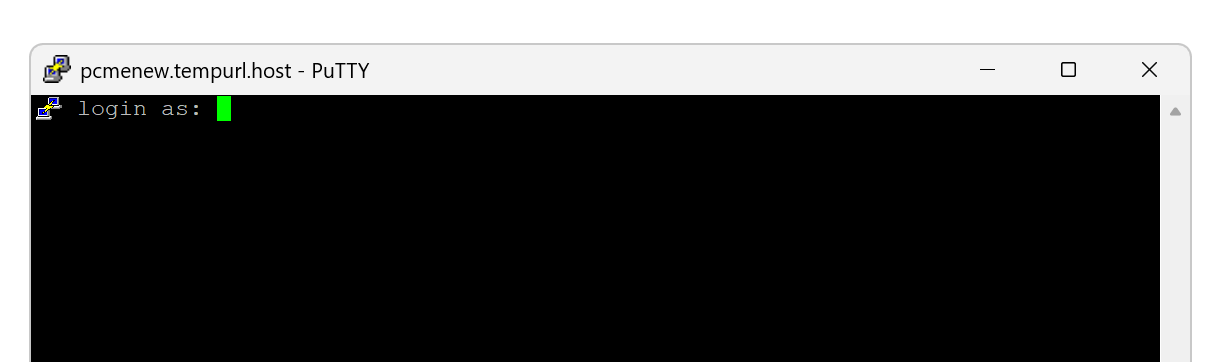

You’ll then be prompted to enter the username for the SSH user you created in Step 1 above. Click Enter once you’ve typed that in.

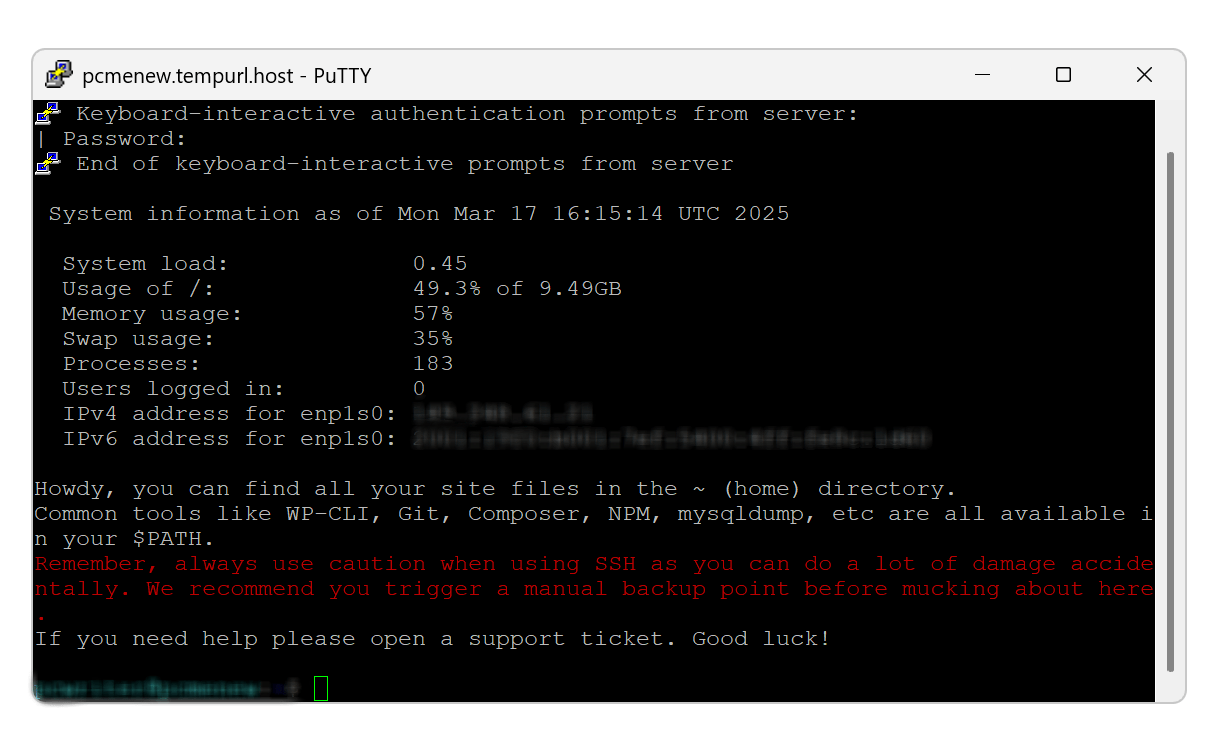

Then type in the password for your SSH user, and click Enter again. You should now be securely connected to the database of your chosen environment, and can proceed with whichever management tasks you need to perform.
We’ll assume you already have HeidiSQL installed on your computer.

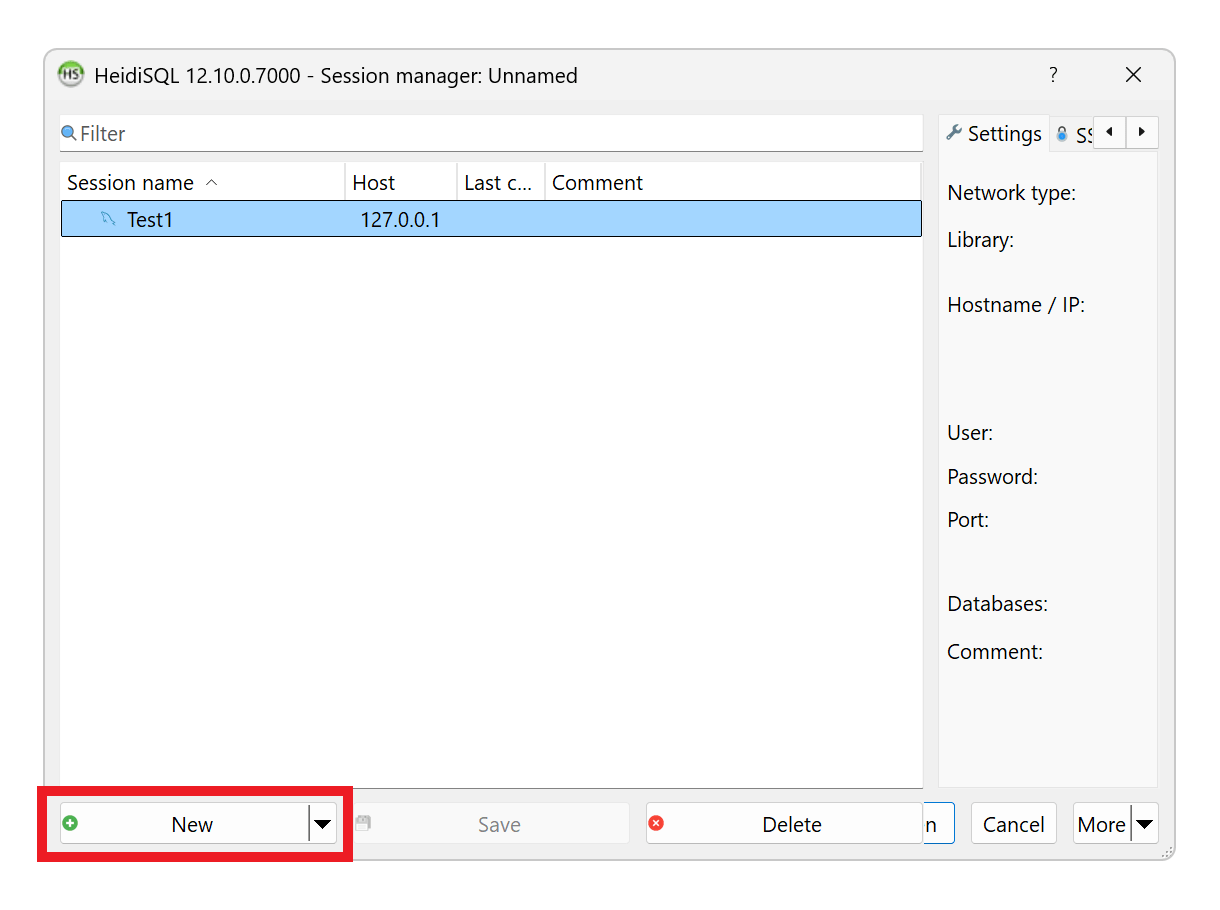

Launch HeidiSQL and click the New button at the bottom-left to create a new session for your connection if you wish to.

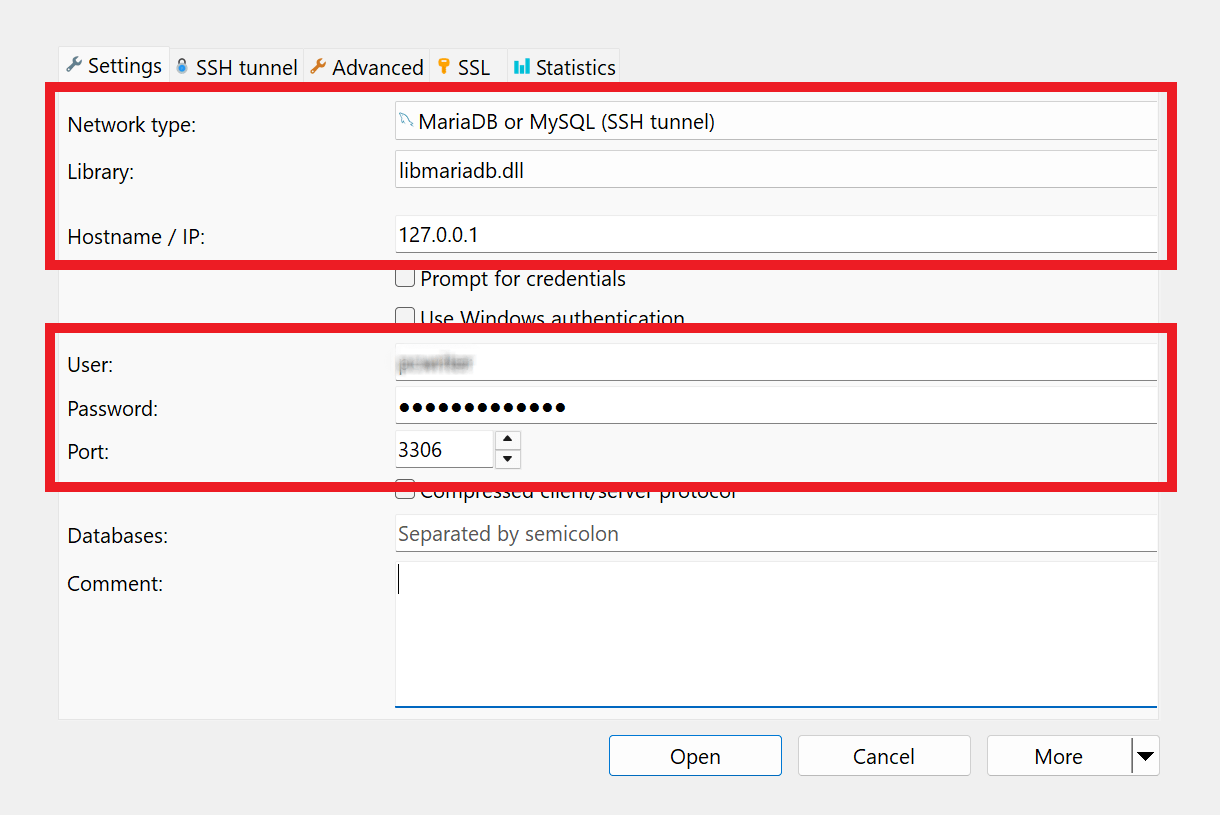

Then in the right-hand pane, under the Settings tab, select MariaDB or MySQL (SSH tunnel) for the Network type, and libmariadb.dll for the Library.
The Hostname/IP should be the localhost IP address from the DB_HOST info you copied in Step 2 above: 127.0.0.1
Enter the DB_USER and DB_PASSWORD that you copied in Step 2 above in the User and Password fields.
The Port should correspond to the environment for which you created the SSH user in Step 2 above: 3306 for production, or 3307 for staging.

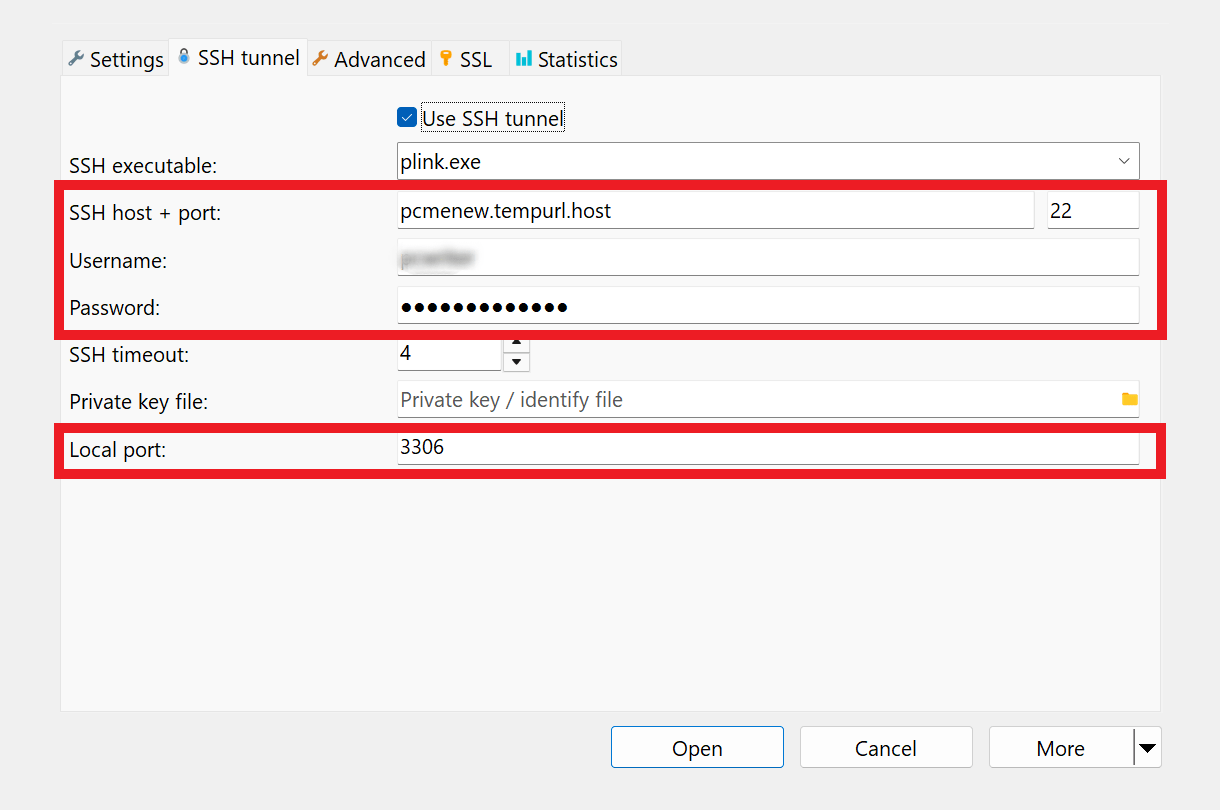

Next, switch to the SSH tunnel tab and, using the SSH credentials you copied in Step 1 above, enter the Connection Address and Port in the SSH host + port fields.
Enter your SSH Username and Password in the corresponding fields.
Set the Local port to the port corresponding to the environment for which you created your SSH user in Step 2 above: 3306 for production, or 3307 for staging.
Click the Open button to proceed. A security alert will appear if this is the first time you have connected with these credentials. Click the Yes button to proceed.
If you get an alert saying something like “End of keyboard interactive prompts from server”, just click the OK button there.

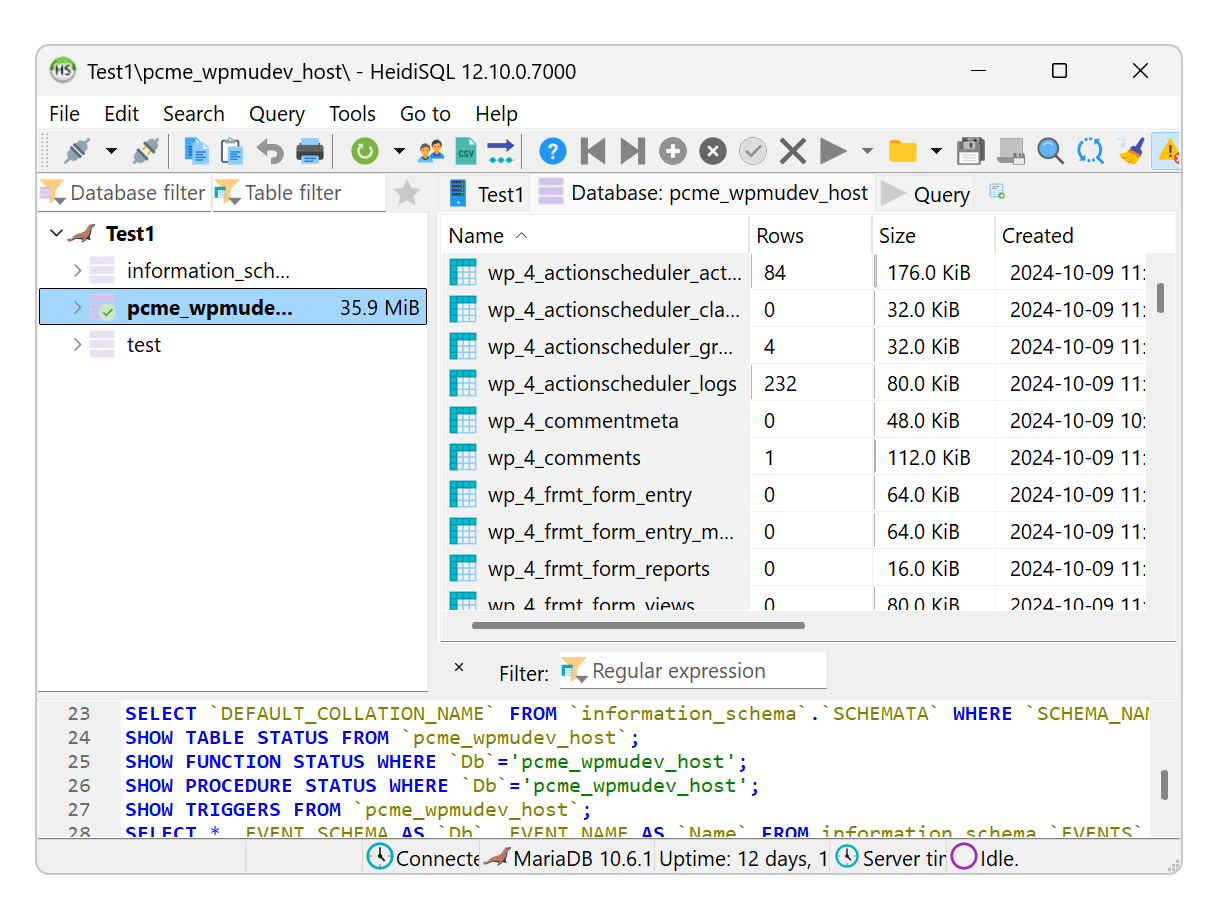

The interface will then update and you should now be securely connected to the database of your chosen environment, and can proceed with whichever management tasks you need to perform.
We’ll assume you already have MySQL Workbench installed on your computer.

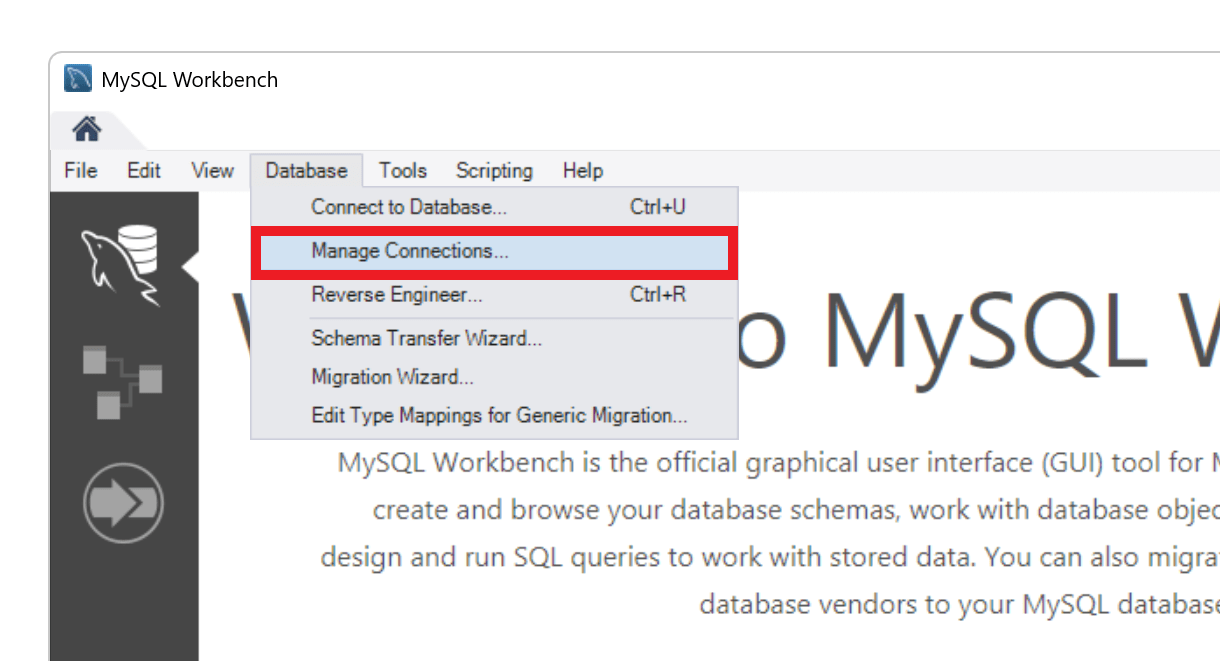

Launch MySQL Workbench and select Manage Connections from the Database menu to set up a new connection for your SSH tunnel.

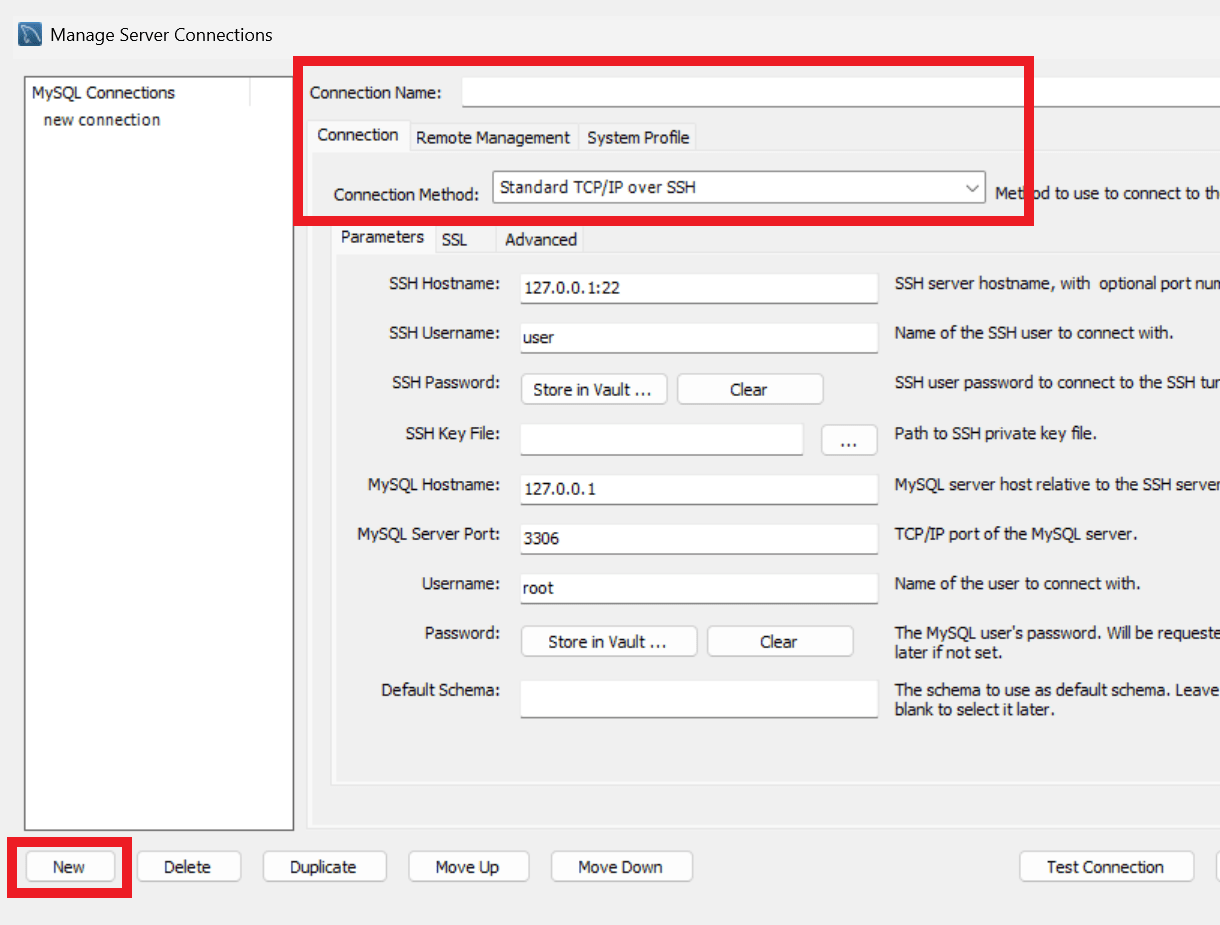

Click the New button at the bottom-left. Then enter a Connection Name and, under the Connection tab, select Standard TCP/IP over SSH as the Connection Method.

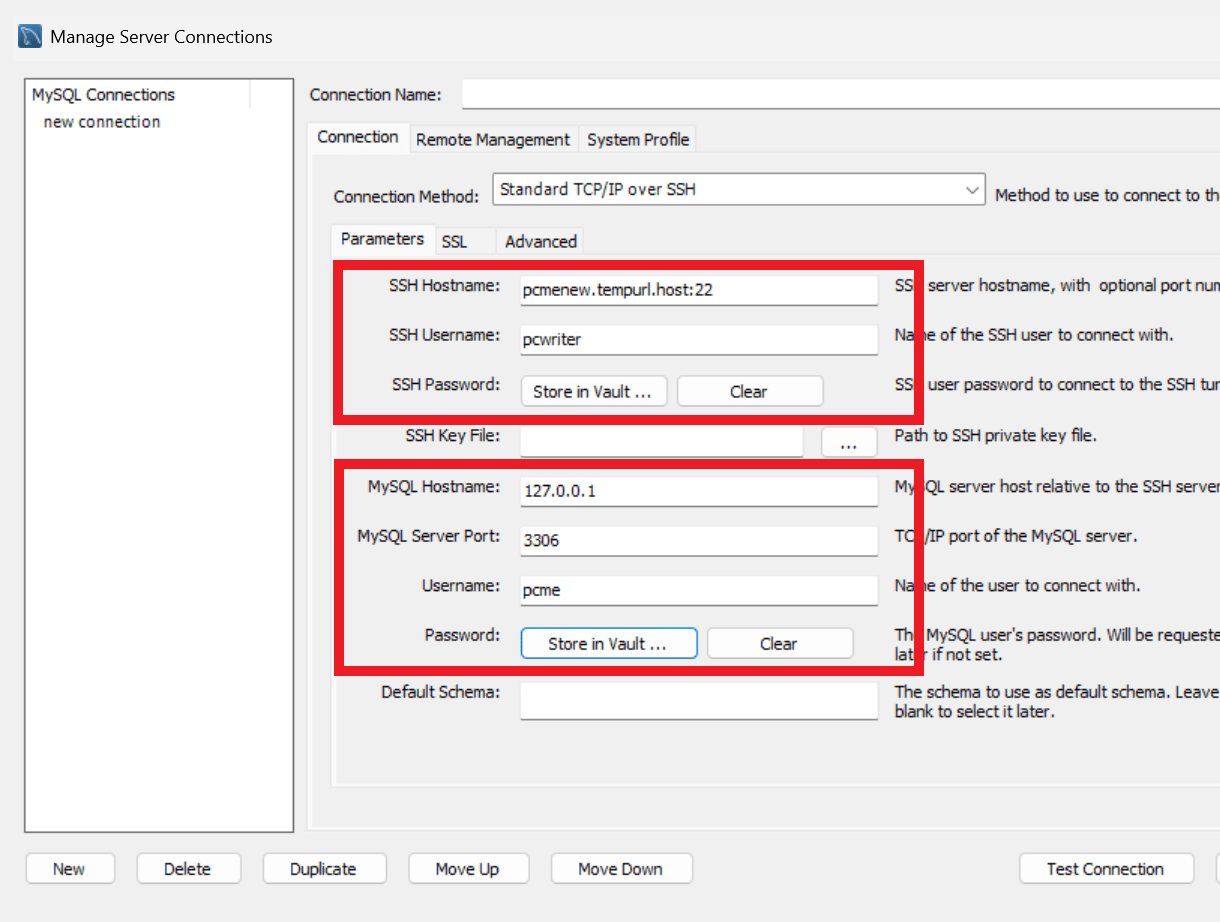

Next, under the Parameters subtab, using the SSH credentials you copied in Step 1 above, enter your Connection Address in the SSH Hostname field (you do not need to include the port 22 as that will be added by default when you save this connection).
Enter your SSH Username in the corresponding field. Then click the Store in Vault button next to SSH Password and enter your SSH password there.
Enter the localhost IP address of your database in the MySQL Hostname field: 127.0.0.1
Enter the port corresponding to the environment for which you created your SSH user, as seen in Step 2 above, in the MySQL Server Port field: 3306 for production, or 3307 for staging.
Enter the DB_USER and DB_PASSWORD that you copied in Step 2 above in the Username and Password fields. Here again, click the Store in Vault button to save the password.

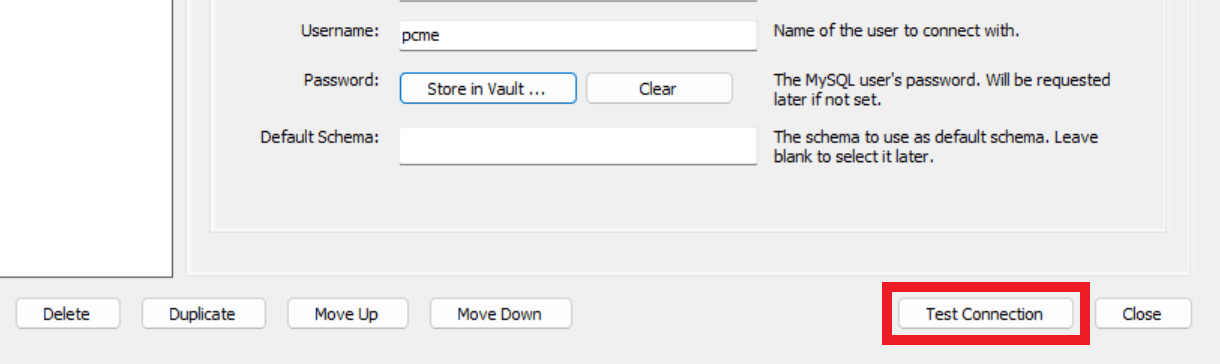

Once all the info has been entered, click the Test Connection button at the bottom-right.

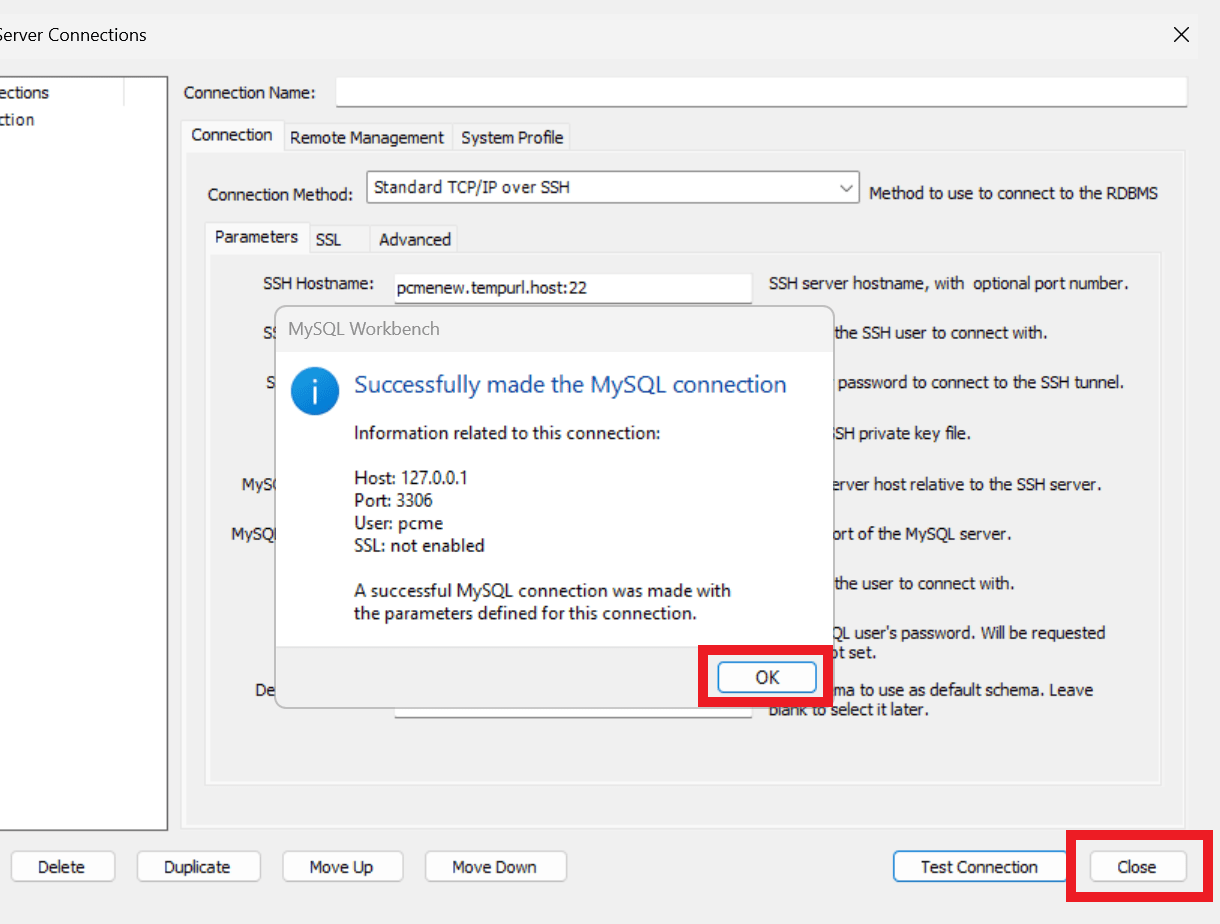

You may be prompted to enter either your SSH user or DB_PASS password, and should then see a message confirming that the connection has been successfully made.
Click the OK button to close that message, and click the Close button at the bottom-right of the new connection window.

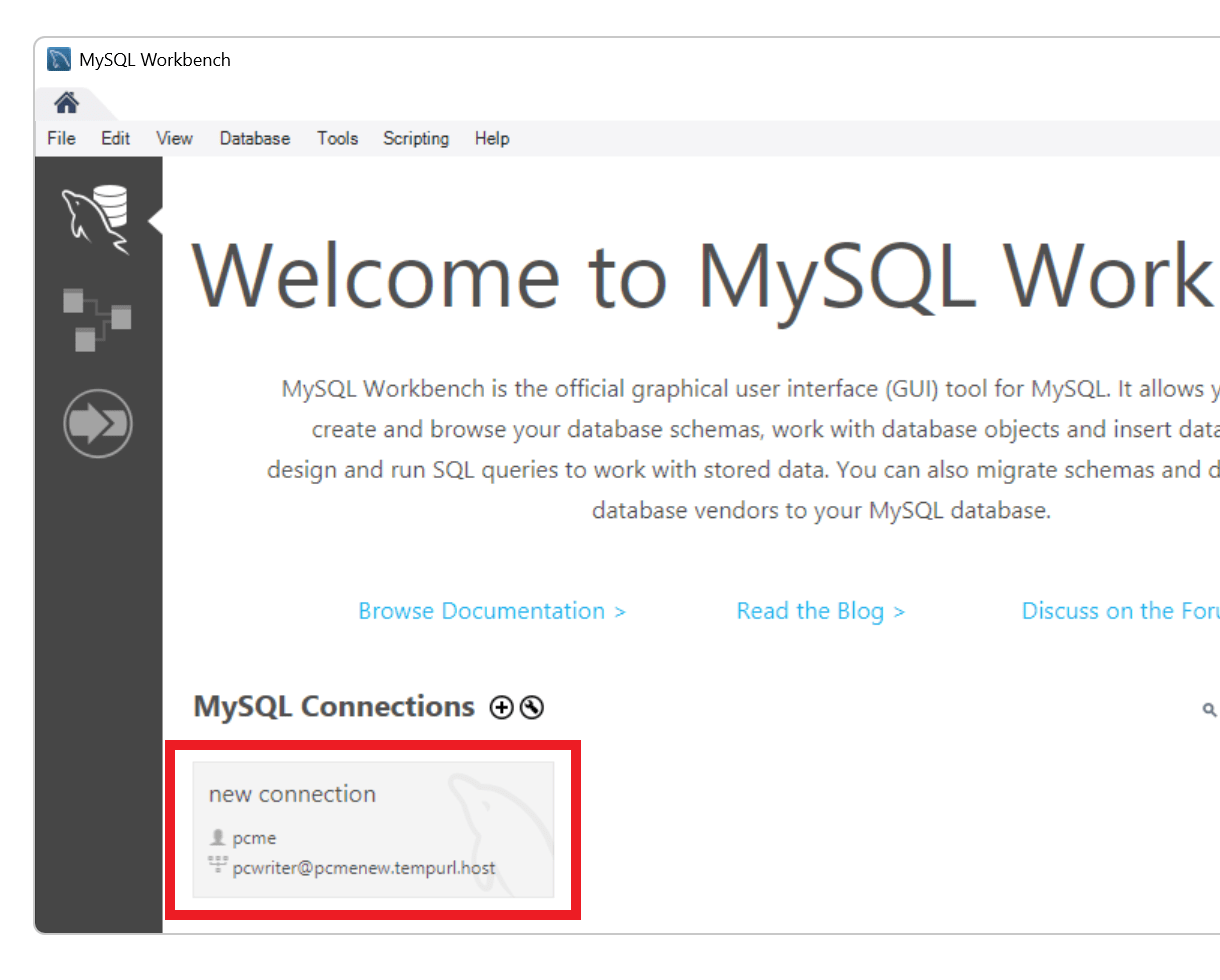

You should now see your new connection appear on the Home screen of the Workbench.

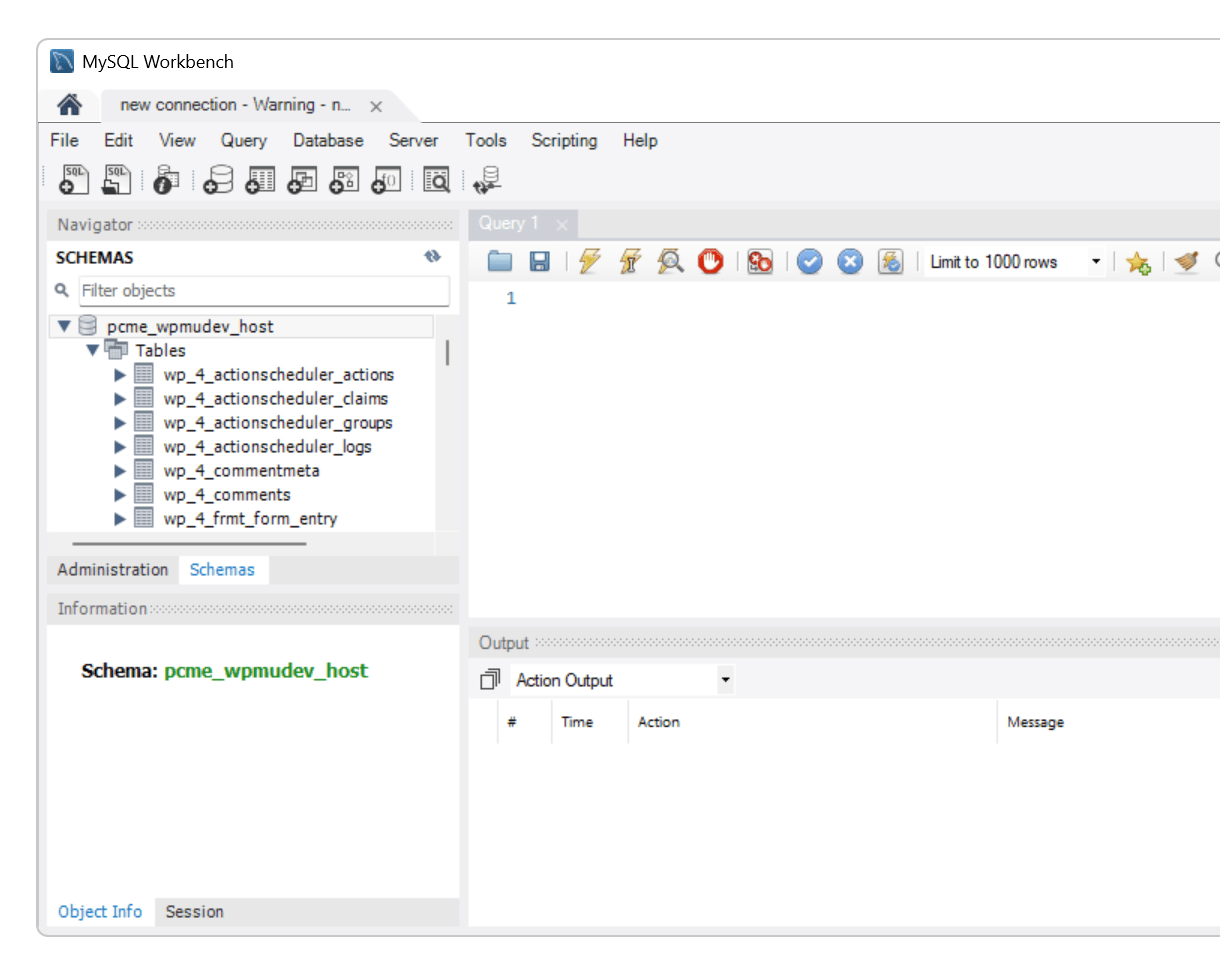

Click on your new connection to open the Workbench SQL Editor where you will be securely connected to the database of your chosen environment, and can proceed with whichever management tasks you need to perform.
